YZF-R1 2020- Crankcase Covers OEM Parts
YZF-R1 2020- Crankcase Covers OEM Parts
€ 0,26 – € 219,99
excl. VAT

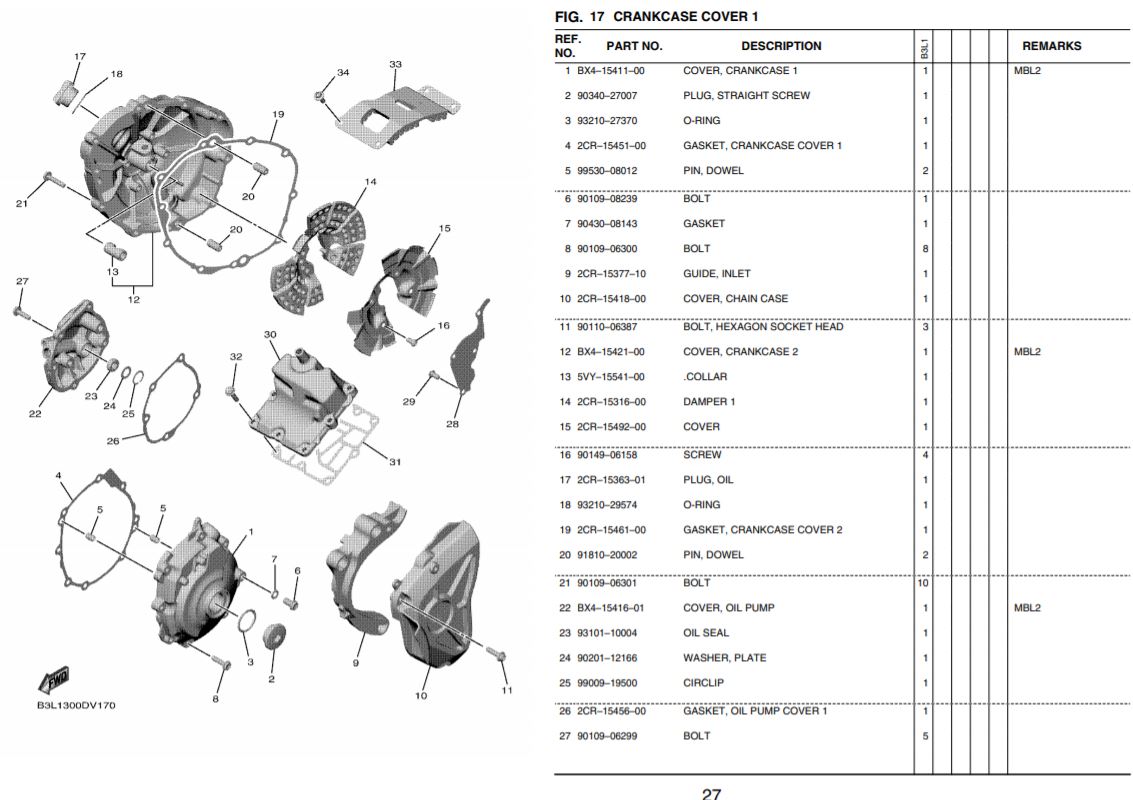

| ef. | Teile Nummer | Beschreibung | Stk | Neu | Bemerkung |
|---|
| 01 | BX4-15411-00 | DECKEL, KURBELGEHAUSE 1 | 1 | MBL2 | |
| 02 | 90340-27007 | VERSCHLUSSSCHRAUBE, ZYL. | 1 | ||
| 03 | 93210-27370 | O-RING | 1 | ||
| 04 | 2CR-15451-00 | DICHTUNG, KURBELGEHAUSEDECK. | 1 | ||
| 05 | 99530-08012 | PASSTIFT | 2 | ||
| 06 | 90109-08239 | SCHRAUBE | 1 | ||
| 07 | 90430-08143 | DICHTUNG | 1 | ||
| 08 | 90109-06300 | SCHRAUBE | 8 | ||
| 09 | 2CR-15377-10 | FUHRUNG, EINLASS | 1 | ||
| 10 | 2CR-15418-00 | DECKEL, KETTENKASTEN | 1 | ||
| 11 | 90110-06387 | INNENSECHSKANTSCHRAUBE | 3 | ||
| 12 | BX4-15421-00 | DECKEL, KURBELGEHAUSE 2 | 1 | MBL2 | |
| 13 | 5VY-15541-00 | .HULSE | 1 | ||
| 14 | 2CR-15316-00 | DAMPFER 1 | 1 | ||
| 15 | 2CR-15492-00 | DECKEL | 1 | ||
| 16 | 90149-06158 | SCHRAUBE | 4 | ||
| 17 | 2CR-15363-01 | OLSCHRAUBE | 1 | ||
| 18 | 93210-29574 | O-RING | 1 | ||
| 19 | 2CR-15461-00 | DICHTUNG, KURBELGEHAUSEDECK. 2 | 1 | ||
| 20 | 91810-20002 | PASSTIFT | 2 | ||
| 21 | 90109-06301 | SCHRAUBE | 10 | ||
| 22 | BX4-15416-01 | DECKEL, OLPUMPE | 1 | MBL2 | |
| 23 | 93101-10004 | WELLENDICHTRING | 1 | ||
| 24 | 90201-12166 | UNTERLEGSCHIBE | 1 | ||
| 25 | 99009-19500 | SPRENGRING | 1 | ||
| 26 | 2CR-15456-00 | DICHTUNG, OLPUMPENDECKEL 1 | 1 | ||
| 27 | 90109-06299 | SCHRAUBE | 5 | ||
| 28 | 2CR-11165-00 | PLATTE, BELUFTUNG | 1 | ||
| 29 | 90149-06158 | SCHRAUBE | 4 | ||
| 30 | 2CR-15413-00 | DECKEL | 1 | ||
| 31 | 2CR-15462-00 | DICHTUNG, KURBELGEHAUSEDECK.3 | 1 | ||
| 32 | 90109-06300 | SCHRAUBE | 8 | ||
| 33 | 2CR-15113-00 | PLATTE | 1 | ||
| 34 | 90110-06108 | INNENSECHSKANTSCHRAUBE | 4 |
Additional information
| Weight | 15 kg |
|---|---|
| Dimensions | N/A |
| Partnumber | 01 BX4-15411-00 COVER 1, 02 90340-27007 PLUG, 03 93210-27370 O-RING, 04 2CR-15451-00 GASKET, 05 99530-08012 PIN, 06 90109-08239 BOLT, 07 90430-08143 GASKET, 08 90109-06300 BOLT, 09 2CR-15377-10 GUIDE INLET, 10 2CR-15418-00 COVER, 11 90110-06387 BOLT, 12 BX4-15421-00 COVER, 13 5VY-15541-00 COLLAR, 14 2CR-15316-00 DAMPER, 15 2CR-15492-00 DECKEL, 16 90149-06158 BOLT, 17 2CR-15363-01 PLUG OIL, 18 93210-29574 O-RING, 19 2CR-15461-00 GASKET, 20 91810-20002 PIN, 21 90109-06301 BOLT, 22 BX4-15416-01 COVER OILPUMP, 24 90201-12166 WASHER PLATE, 25 99009-19500 CIRCLIP, 26 2CR-15456-00 GASKET, 27 90109-06299 BOLT, 28 2CR-11165-00 PLATE BREATHER, 29 90149-06158 BOLT, 30 2CR-15413-00 COVER, 31 2CR-15462-00 GASKET, 32 90109-06300 BOLT, 33 2CR-15113-00 PLATE, 34 90110-06108 BOLT HEXAGON SOCKET |
