YZF-R1 2015-2022 Clutch
YZF-R1 2015-2022 Clutch
€ 5,52 – € 799,00
excl. VAT

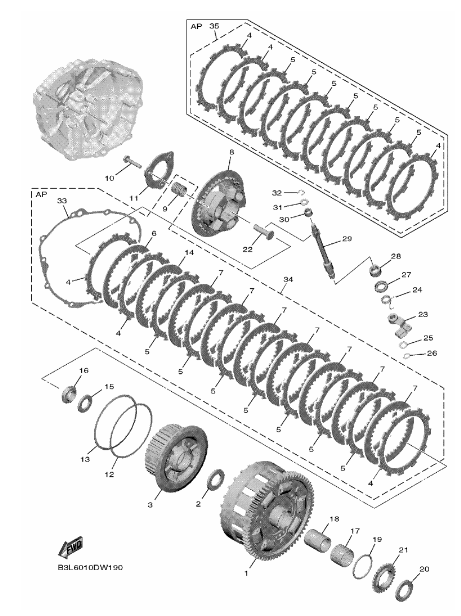

| 01 | 2CR-16150-00 | PRIMARABTRIEBSRAD KOMPL. | 1 | ||
| 02 | 363-16154-00 | DRUCKPLATTE 1 | 1 | ||
| 03 | 2CR-16371-00 | KUPPLUNGSNABE | 1 | ||
| 04 | 2CR-16330-00 | REIBSCHEIBE 2 | 3 | ||
| 05 | 2CR-16321-00 | REIBSCHEIBE | 7 | ||
| 06 | 2CR-16324-00 | KUPPLUNGSSCHEIBE 1 | 1 | (T 2.6) | |
| 07 | 2CR-16325-00 | KUPPLUNGSSCHEIBE 2 | 7 | (T 2.3) | |
| 08 | BX4-16350-00 | DRUCKPLATTENEINHEIT | 1 | ||
| 09 | 2CR-16173-00 | DRUCKFEDER | 3 | ||
| 10 | 2CR-16337-00 | SCHRAUBE, FEDER | 3 | ||
| 11 | 2CR-16352-00 | DRUCKPLATTE 2 | 1 | ||
| 12 | 2CR-16384-10 | PLATTE, SITZ | 1 | ||
| 13 | 2CR-16383-00 | FEDER.,KISSEN | 1 | ||
| 14 | 2CR-16325-00 | KUPPLUNGSSCHEIBE 2 | 1 | UR (T 2.3) | |
| 14 | 2CR-16325-10 | KUPPLUNGSSCHEIBE 2 | 1 | UR (T 2.0) | |
| 14 | 2CR-16325-20 | KUPPLUNGSSCHEIBE 2 | 1 | UR (T 2.6) | |
| 15 | 90208-20001 | TELLERFEDER | 1 | ||
| 16 | 90179-20007 | MUTTER | 1 | ||
| 17 | 93310-23168 | LAGER | 1 | ||
| 18 | 14B-16181-00 | ABSTANDHALTER 1 | 1 | ||
| 19 | 90201-44008 | UNTERLEGSCHIBE | 1 | ||
| 20 | 2CR-16154-00 | DRUCKPLATTE 1 | 1 | ||
| 21 | 14B-13354-01 | KETTENRAD, ANTRIEB | 1 | ||
| 22 | 1WS-16356-00 | SCHUBSTANGE 1 | 1 | ||
| 23 | 2CR-16340-00 | SCHUBHEBELEINHEIT | 1 | ||
| 24 | 90508-16041 | ZUGFEDER | 1 | ||
| 25 | 90201-10029 | UNTERLEGSCHIBE | 1 | ||
| 26 | 99009-10400 | SPRENGRING | 1 | ||
| 27 | 93102-15212 | WELLENDICHTRING | 1 | ||
| 28 | 93315-21570 | LAGER | 1 | ||
| 29 | 5VY-16382-10 | WELLE, SCHUBHEBEL | 1 | ||
| 30 | 93317-11096 | LAGER | 1 | ||
| 31 | 92907-08600 | SCHEIBE | 1 | ||
| 32 | 99001-07600 | SPRENGRING | 1 | ||
| 33 | 2CR-15461-00 | DICHTUNG, KURBELGEHAUSEDECK. 2 | 1 | ||
| 34 | B3L-W001G-00 | KUPPLUNGSSCHEIBEEINHEIT | 1 | AP | |
| 35 | B67-W001M-00 | REIBSCHEIBESATZ | 1 | AP |
Additional information
| Weight | N/A |
|---|---|
| Partnumber | 01 2CR-16150-00 PRIMARYDRIVE, 08 BX4-16350-00 Plate Pressure, 04 2CR-16330-00 Plate friction, 05 2CR-16321-00 Plate friction, 06 2CR-16324-00 Steel Plate (T 2.6), 07 2CR-16325-00 Steel Plate (T 2.3), 14 2CR-16325-00 Plate Steel (T 2.3), 14 2CR-16325-10 Plate Steel (T 2.0), 14 2CR-16325-20 Steel Plate (T 2.6), 16 90179-20007 Nut, 33 2CR-15461-00 Gasket Clutchcover |
